In today’s high-pressure, high-stakes oil and gas landscape, safety is not just a priority—it’s a prerequisite. At Armor Tools, we understand the risks involved in downhole operations and are committed to advancing safety without compromising performance. One of the unsung heroes of well integrity and pressure management is the rupture disc—a small component with a massive impact. This article explores the crucial role rupture discs play in downhole safety, the engineering that sets our tools apart, and real-world applications where they’ve made the difference.

What Are Rupture Discs and Why Do They Matter?

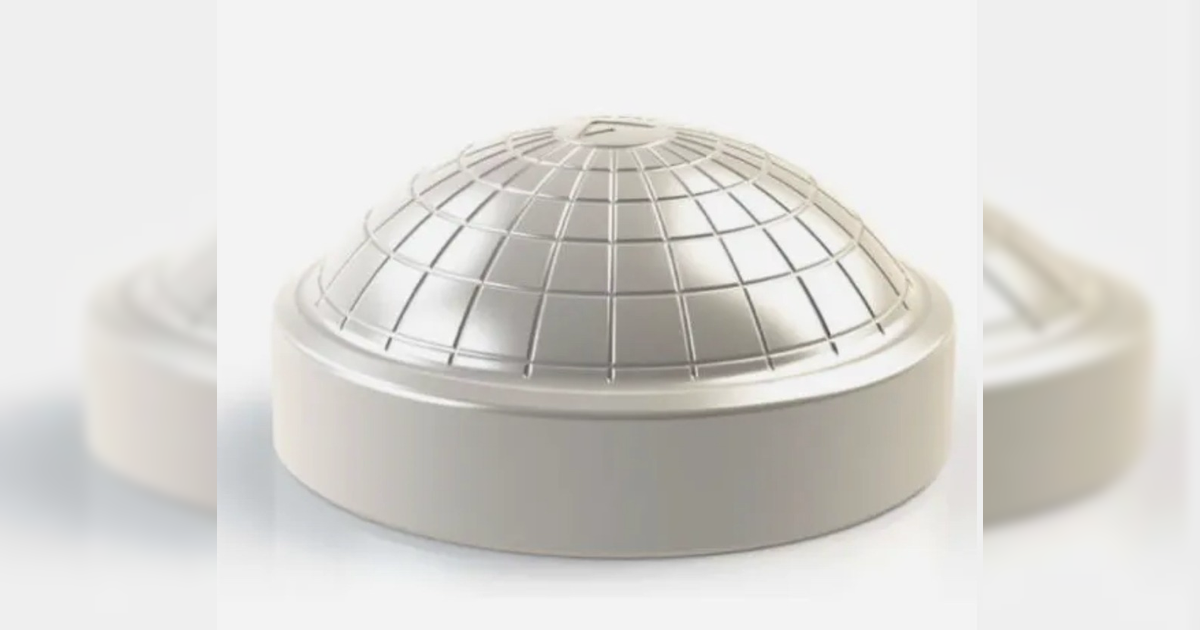

Rupture discs, also known as burst discs, are pre-calibrated pressure relief devices that protect equipment, personnel, and environments from pressure-related hazards. In the context of downhole tools, they act as a failsafe—rupturing at a precise pressure to relieve excess pressure and prevent catastrophic failures.

At Armor Tools, our rupture discs are engineered with precision and built to perform reliably under the most extreme downhole conditions. Whether it's a high-pressure formation or a temperature-variable environment, our rupture disc technology ensures operational safety when it matters most.

Engineering Excellence at the Core

What separates Armor Tools' rupture discs from conventional models is the fusion of advanced metallurgy, manufacturing precision, and extensive testing. Our discs are designed with:

  • Accurate Burst Pressure Calibration: Each rupture disc is meticulously calibrated to rupture at a specific pressure, ensuring precise control during critical moments.

  • High-Temperature Tolerance: Downhole environments can exceed 300°F (150°C) and our discs are engineered to maintain structural integrity and performance even under prolonged exposure to these conditions.

  • Material Versatility: Depending on operational needs, we use specialized materials such as Inconel®, stainless steel, and other high-nickel alloys to ensure strength and corrosion resistance.

  • Corrosion and Fatigue Resistance: Designed to withstand corrosive fluids and cycling pressures, Armor Tools’ rupture discs deliver consistent reliability throughout the tool’s lifecycle.


All of our rupture disc assemblies are manufactured in-house and adhere to ISO and API quality standards, ensuring each unit meets or exceeds industry expectations.

Meeting and Exceeding Industry Standards

Compliance isn’t just about meeting benchmarks; it’s about setting them. Armor Tools’ rupture discs are developed in strict alignment with IRP - 15 engineering team conducts rigorous pressure testing, fatigue analysis, and lifecycle simulations to validate the performance of each product before deployment.

Additionally, all of our downhole tools—including rupture disc-integrated components—undergo serialized testing and documentation. This not only assures performance but provides full traceability for every component that goes into a well.

Real-World Applications That Save Time—and Lives

Our rupture disc technology is embedded in various downhole tools including pressure-activated firing heads, casing circulation tools, packer systems, and safety valves. In one notable deployment in a high-pressure gas reservoir in Northern Alberta, our rupture disc firing head enabled safe, controlled activation of the tubing-conveyed perforating system. The disc’s precise rupture point prevented premature tool activation and maintained formation integrity.

In another case, a client operating offshore in the North Sea implemented our rupture disc-equipped casing collar to control fluid diversion during a critical cementing job. The controlled rupture allowed them to execute a flawless zonal isolation—saving not just hours, but potentially days of operational downtime.

The Armor Tools Advantage

At Armor Tools, we pride ourselves on building tools that operators can trust—every time. Our rupture disc systems reflect decades of experience in engineering, testing, and real-world problem solving. From improving safety in snubbing operations to enabling effective hydraulic activation of tools, our rupture discs serve as silent sentinels guarding the integrity of each wellbore.

We also offer custom disc configurations based on client needs—pressure rating, disc geometry, and temperature compatibility—ensuring that the solution you deploy is built specifically for your job.

Final Thoughts

As exploration moves into deeper and more complex formations, safety will remain the cornerstone of success. Armor Tools is proud to be leading the charge with rupture disc technology that’s not just compliant—but truly cutting-edge. With innovation at our core, and safety as our mission, we are dedicated to helping our clients operate smarter, safer, and more efficiently.

Explore our full line of rupture disc solutions and downhole safety tools at www.armortools.ca.
